FIREGLASS

NEOCERAM

QUOTE||800.426.0279

Heat-Resistant Glass Ceramic for High Efficiency Heating Appliances

UP TO
1292° F

Neoceram is a transparent low-expansion glass-ceramic with a number of outstanding features that include high resistance to thermal shock, high mechanical strength, and excellent electrical characteristics. With an almost zero thermal expansion coefficient, the applications for Neoceram continue to grow. Trusted for over 30 years, Neoceram now features a smoother, texture-free surface with less visible color.

“I try to give people a different way of looking at their surroundings. That's art to me.”

-Maya Lin

KEY FEATURES


  • Withstands continuous temperatures to 1292°F
  • Sheet size of 44" x 78" (silica coated)
  • Available in a wide variety of shapes and sizes including bent and curved configurations
  • Free of arsenic and heavy metals
  • Thermal shock resistant
  • Superior heat resistance (nearly three times that of tempered glass)
  • Improved surface quality and color
  • Available in clear and black
  • Available in 3 mm and 5 mm thickness
  • Can be cut with regular glass cutters for immediate customer service
  • Available with colored options (ceramic frit)

ATTRIBUTES



SHAPES

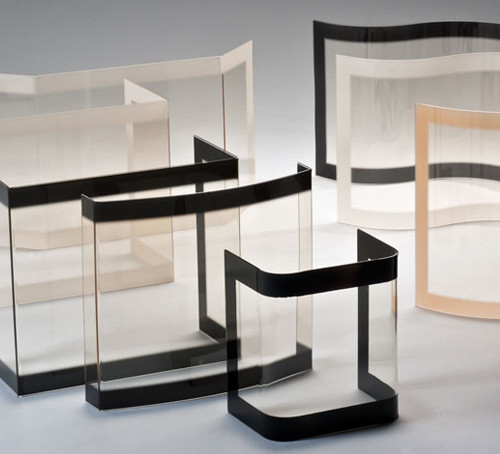

Neoceram is available in a wide array of glass configurations to complement your hearth designs including flat, single bent, double bent and curved.

The images shown here are only a sample of possible designs and applications. Contact TGP with your design criteria for a custom solution.

Note: These are custom made options for OEM's and have minimum quantity requirements.

CERAMIC FRIT COLORS


Colored ceramic frit is fused at high temperatures to the glass and becomes a permanent coating that is as strong and durable as the glass. Neoceram is available in a variety of custom and standard frit colors, as well as edge detail patterns. Creating a custom look has never been easier.

The colors shown here are only a sample of possible ceramic frit colors. Contact TGP with your design criteria for a custom solution.

Note: Actual colors may vary slightly.  These are custom made options for OEM's and have minimum quantity requirements.


COATINGS



Half Mirror Coating

Half mirror coating allows the flames to appear in the forefront of the glass, while the background of the stove remains visually obscured. When the flames are extinguished, the stove interior fades into the background so that the decorative exterior of the hearth remains the visual focus. The darker the fireplace interior, the more dramatic the effect.

The images shown here are only a sample of possible designs and applications. Contact TGP with your design criteria for a custom solution.


BUHM


YEHM


PIHM


ORHM


SBHM


GRHM


FLHM


EUHM

Heat Reflective Coating (IR)

Heat reflective coating improves energy efficiency by suppressing and capturing the output of heat to improve combustion for high-efficiency stoves and fireplaces.  The coating raises the temperature of the glass to help reduce adhesion of soot, and provides a uniform glass surface that maintains a natural view of the stove or fireplace.

Heat reflective coatings are available for various flat and curved glass configurations.

For more information about any of the high performance coatings available for your project, please contact TGP.

The time, in minutes or hours, that materials or assemblies can be expected to prevent flames and smoke from spreading.

As heat develops within the source area, pressure within the enclosed room begins to build relative to the pressure outside. Once the fire reaches equilibrium in the positive pressure zone, smoke, hot gases and flames are forced through any openings in the door or window assembly. Testing to the UL 10C standard more closely simulates real fire conditions.

Blocks radiant and conductive heat transfer from one side of the glass to the other. A required characteristic of glass used as a wall.

Classified and labeled by Underwriters Laboratories, Inc.® (UL), an independent product safety certification organization.

Immediately following a furnace test, heated glass is subjected to water from a fire hose. The cooling, impact and erosion created by the hose stream tests the integrity of the glass. In the U.S., the hose stream test is required for all fire ratings over 45 minutes (all fire ratings require it in Canada).

Available as a temperature rise door with Pilkington Pyrostop® fire-resistive-rated glass for 60-90 minute applications

Temperature rise doors provide a barrier to radiant and conductive heat transfer.

Available in stainless steel frame finish options for increased design flexibility.

Building codes clearly define hazardous locations where impact safety glass is required. Glass with this designation has been tested to meet impact safety requirements required for areas such as doors, sidelights, and areas close to the floor.

FireLite IGU is a fire-rated insulated glass ceramic unit that also complies with energy codes. It is designed for use in exterior applications where energy codes require an insulated product, or for interior applications with special needs such as sound reduction.

Withstands continuous temperatures to 1292° F for use in high efficiency heating appliances.

The ability of glass ceramic to withstand sudden heating, cooling, or both without cracking, shattering or exploding out of the frame.

The ability of the glass to stop various types of ammunition. Ratings are assigned in levels from 1 to 8, with a Level 8 rating being the highest (able to stop a 7.62mm rifle lead core full metal copper jacket, military ball).

The capacity of an element in a building structure to support a weight in addition to its own.

Listed and labeled by Intertek, an independent assurance, testing, inspection and certification organization.

Glazing designed to increase the amount of time required to gain entry. This additional time is intended to allow for the enactment of lock-down protocols and to allow for the arrival of emergency response teams. May be used in areas with high risk of prolonged attack or in critical areas such as vestibules. Forced entry resistant glazing should also resist penetration from hand-held or hand-thrown objects such as hammers, crowbars, bats, knives, bricks and rocks. (Source: NGA Glass Technical Paper FB71-21)
