Fire-Rated Doors & Frames

20/45/60/90 Minutes



Fireframes® Designer Series doors and frames incorporate precise European engineering to provide a sleek, modern alternative to traditional steel hollow metal frames with glass sizes surpassing traditional systems.

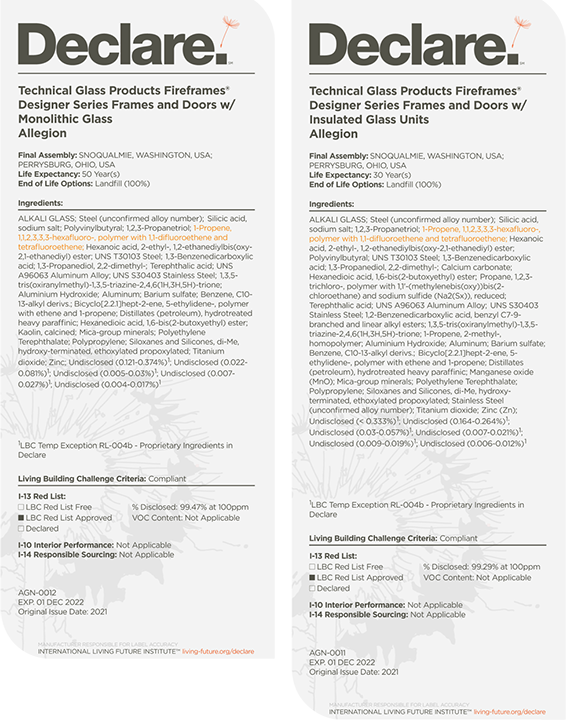

Fireframes Designer Series with monolithic glass and Fireframes Designer Series with Insulated Glass Units have both earned a Living Building Challenge Red List Approved Declare Label. These Declare labels can be used for building projects seeking to achieve either the Living Building Challenge or LEED green building rating systems.

See all of TGP's Declare labels.

"Design is not just what it looks like and feels like. Design is how it works."

-Steve Jobs


  • Fire ratings of 20-90 minutes (45-90 minutes with required hose stream test)
  • Easy installation similar to typical storefront systems
  • Narrow steel profiles
  • Full-lite doors available in single leaf or double leaf design; see Fireframes Designer Series Door fact sheet
  • Durable welded steel construction of doors
  • Modular system that can incorporate 20/45/60/90 minute Fireframes Designer Series doors
  • Can be used with wired glass, Fireglass®20, Pilkington Pyrostop® or the FireLite® family of products
  • Available as a temperature rise door for 60-90 minute applications
  • Frames supplied welded or "KD" (knock-down) depending on application
  • Door hardware available to fit functional requirements. Please check with TGP for compatability
  • Finish powder coating at the factory to match desired color scheme
  • Arched profiles
  • Brushed stainless steel finish available for fire ratings up to 45 minutes
  • Note: This product is not intended for use in locations requiring a barrier to radiant heat, as it does not meet test standards ASTM E119 or UL 263. If your jurisdiction requires “barrier to heat” framing, please contact Technical Glass Products regarding Fireframes products that meet the barrier to heat requirement.



Maximum Allowable Size Information


Rating Max. Exposed Glass
Area Per Piece
Max. Exposed Glass
Single Dimension
20 Min. 3,325 in2 95"
45 Min. 4,500 in2 95 1/4"
60 Min. 5,616 in2 104-1/16"
90 Min. 4,162 in2 111"


Rating Max. Single Door Leaf Size Max. Exposed Glass
Size Per Piece
20 Min. 43" x 95-7/8" 36" x 88-3/4"
45 Min. 43" x 95-7/8" 36" x 88-3/4"
60 Min. 43" x 95-7/8" 36" x 88-3/4"
90 Min. 43" x 95-7/8" 36" x 56-1/2" (divided lite door)

Temperature Rise Doors with Pilkington Pyrostop®

Doors: Singles and AA/AF Rating Max. Width Max. Height
Max. Door Leaf Size 60/90 min. 48-3/16" 107-7/8"
Max. Door Opening Single 60/90 min. 48-1/8" 108"
Max. Door Opening Active-Active (AA Pair) 60 min. 96-1/4" 108"

Note: Individual lite sizes cannot exceed max. sizes shown above. For double egress and specific assembly patterns, please reference Architectural Specification Manual at


All door hardware for Designer Series doors is supplied by Technical Glass Products. Please contact Technical Glass regarding your individual hardware requirements.

Standard door hardware package may include:


Classified and labeled by Underwriters Laboratories, Inc.® and Underwriters Laboratories of Canada. File numbers R25229 (windows) and R19207 (doors). Tests performed in accordance with:

UL 9 UL 10B UL 10C
NFPA 80 NFPA 252 NFPA 257
MEA 426-04-M LARR 25798

The time, in minutes or hours, that materials or assemblies can be expected to prevent flames and smoke from spreading.

As heat develops within the source area, pressure within the enclosed room begins to build relative to the pressure outside. Once the fire reaches equilibrium in the positive pressure zone, smoke, hot gases and flames are forced through any openings in the door or window assembly. Testing to the UL 10C standard more closely simulates real fire conditions.

Blocks radiant and conductive heat transfer from one side of the glass to the other. A required characteristic of glass used as a wall.

Classified and labeled by Underwriters Laboratories, Inc.® (UL), an independent product safety certification organization.

Immediately following a furnace test, heated glass is subjected to water from a fire hose. The cooling, impact and erosion created by the hose stream tests the integrity of the glass. In the U.S., the hose stream test is required for all fire ratings over 45 minutes (all fire ratings require it in Canada).

Available as a temperature rise door with Pilkington Pyrostop® fire-resistive-rated glass for 60-90 minute applications

Temperature rise doors provide a barrier to radiant and conductive heat transfer.

Available in stainless steel frame finish options for increased design flexibility.

Building codes clearly define hazardous locations where impact safety glass is required. Glass with this designation has been tested to meet impact safety requirements required for areas such as doors, sidelights, and areas close to the floor.

FireLite IGU is a fire-rated insulated glass ceramic unit that also complies with energy codes. It is designed for use in exterior applications where energy codes require an insulated product, or for interior applications with special needs such as sound reduction.

Withstands continuous temperatures to 1292° F for use in high efficiency heating appliances.

The ability of glass ceramic to withstand sudden heating, cooling, or both without cracking, shattering or exploding out of the frame.

The ability of the glass to stop various types of ammunition. Ratings are assigned in levels from 1 to 8, with a Level 8 rating being the highest (able to stop a 7.62mm rifle lead core full metal copper jacket, military ball).

The capacity of an element in a building structure to support a weight in addition to its own.

Listed and labeled by Intertek, an independent assurance, testing, inspection and certification organization.

Glazing designed to increase the amount of time required to gain entry. This additional time is intended to allow for the enactment of lock-down protocols and to allow for the arrival of emergency response teams. May be used in areas with high risk of prolonged attack or in critical areas such as vestibules. Forced entry resistant glazing should also resist penetration from hand-held or hand-thrown objects such as hammers, crowbars, bats, knives, bricks and rocks. (Source: NGA Glass Technical Paper FB71-21)

This product is both fire- and security-rated and is appropriate for educational facilities.

This product is smoke-rated and tested to UL 1784.
