Fireframes® Heat Barrier Series doors and frames combined with Pilkington Pyrostop® glass, provides a barrier to radiant and conductive heat transfer. The system also allows full-lite fire doors for aesthetic or security reasons.

“We specified a product that also allowed us to install the largest size of glass we could get with minimal framing.”

-David Steele, Muller and Muller

KEY FEATURES


  • Fire ratings of 60-120 minutes with required hose stream test

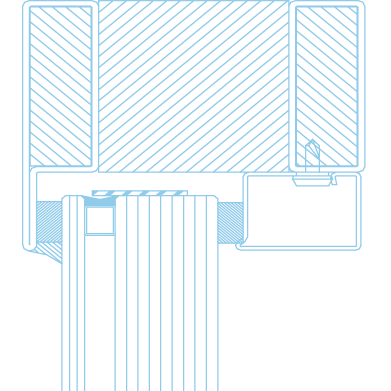

  • Narrow steel profiles
  • Full-lite doors available in single leaf or double leaf design; see Fireframes Heat Barrier Series Door fact sheet
  • Modular system that can incorporate 60/90 minute full-lite temperature rise doors
  • Can incorporate large individual panes of Pilkington Pyrostop® fire-resistive-rated glass, comprised of Pilkington Optiwhite glass and clear intumescent layers
  • Frames supplied "K-D" (knock-down) ready for installation or welded depending on application
  • Unrestricted glazing area for use in locations where total glazing exceeds 25% of wall area
  • Durable steel frames ensure low maintenance system
  • Door hardware available to fit functional requirements. Check with TGP for compatibility
  • Finish painted at the factory to match desired color scheme
  • Easy installation similar to typical storefront systems
  • Passes wall assembly test standard UL263 / ASTM E-119 for 60 and 120 minute ratings

ATTRIBUTES



MAXIMUM SIZE

Maximum Allowable Size Information



FRAMING

Rating Max. Exposed Glass
Area Per Piece
Max. Exposed Glass
Single Dimension
60 Min. 7,442 in2 118-1/8"
90 Min. 3,724 in2 96"
120 Min. 3,730 in2 111"



DOORS

Doors: Singles and AA/AF Rating Max. Width Max. Height
Max. Door Leaf Size 60/90 min. 49-1/4" 112-7/16"
Max. Door Opening Active-Active (AA Pair) 60/90 min. 98-1/8" 112-7/16"

Note: For double egress, please reference Architectural Specification Manual

HARDWARE

All door hardware for Heat Barrier Series doors is supplied by Technical Glass Products. Please contact Technical Glass regarding your individual hardware requirements.

Standard door hardware package may include:

LISTINGS

Classified and labeled by Underwriters Laboratories, Inc.® and Underwriters Laboratories of Canada. File numbers R19207 (doors), R25274 (walls), R25229 (windows), design number U533 (W474 Canada). Tests performed in accordance with:

UL 9 UL 10B UL 10C UL 263 UL 752 (110mm frame)
NFPA 251 NFPA 252 NFPA 257
CAN/ULC-S101 CAN/ULC-S104 CAN/ULC-S106
ASTM E119
MEA 240-00-M LARR 25798

The time, in minutes or hours, that materials or assemblies can be expected to prevent flames and smoke from spreading.

As heat develops within the source area, pressure within the enclosed room begins to build relative to the pressure outside. Once the fire reaches equilibrium in the positive pressure zone, smoke, hot gases and flames are forced through any openings in the door or window assembly. Testing to the UL 10C standard more closely simulates real fire conditions.

Blocks radiant and conductive heat transfer from one side of the glass to the other. A required characteristic of glass used as a wall.

Classified and labeled by Underwriters Laboratories, Inc.® (UL), an independent product safety certification organization.

Immediately following a furnace test, heated glass is subjected to water from a fire hose. The cooling, impact and erosion created by the hose stream tests the integrity of the glass. In the U.S., the hose stream test is required for all fire ratings over 45 minutes (all fire ratings require it in Canada).

Available as a temperature rise door with Pilkington Pyrostop® fire-resistive-rated glass for 60-90 minute applications

Temperature rise doors provide a barrier to radiant and conductive heat transfer.

Available in stainless steel frame finish options for increased design flexibility.

Building codes clearly define hazardous locations where impact safety glass is required. Glass with this designation has been tested to meet impact safety requirements required for areas such as doors, sidelights, and areas close to the floor.

FireLite IGU is a fire-rated insulated glass ceramic unit that also complies with energy codes. It is designed for use in exterior applications where energy codes require an insulated product, or for interior applications with special needs such as sound reduction.

Withstands continuous temperatures to 1292° F for use in high efficiency heating appliances.

The ability of glass ceramic to withstand sudden heating, cooling, or both without cracking, shattering or exploding out of the frame.

The ability of the glass to stop various types of ammunition. Ratings are assigned in levels from 1 to 8, with a Level 8 rating being the highest (able to stop a 7.62mm rifle lead core full metal copper jacket, military ball).

The capacity of an element in a building structure to support a weight in addition to its own.

Listed and labeled by Intertek, an independent assurance, testing, inspection and certification organization.

Glazing designed to increase the amount of time required to gain entry. This additional time is intended to allow for the enactment of lock-down protocols and to allow for the arrival of emergency response teams. May be used in areas with high risk of prolonged attack or in critical areas such as vestibules. Forced entry resistant glazing should also resist penetration from hand-held or hand-thrown objects such as hammers, crowbars, bats, knives, bricks and rocks. (Source: NGA Glass Technical Paper FB71-21)

This product is both fire- and security-rated and is appropriate for educational facilities.

This product is smoke-rated and tested to UL 1784.
