PILKINGTON PYROSTOP with School Guard Glass

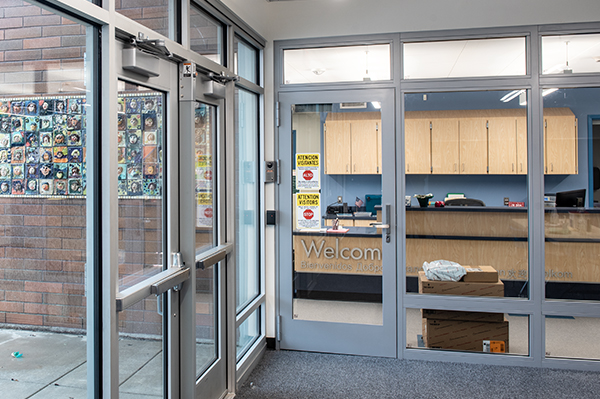

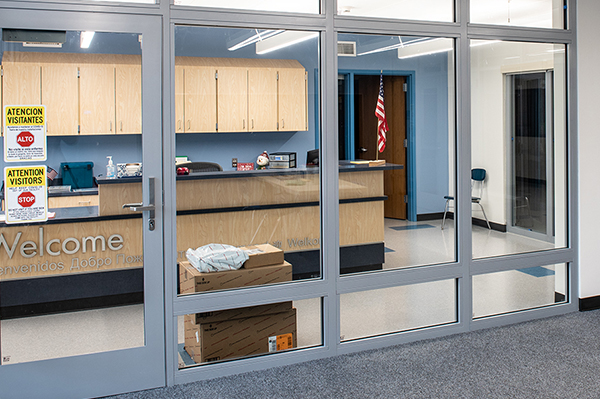

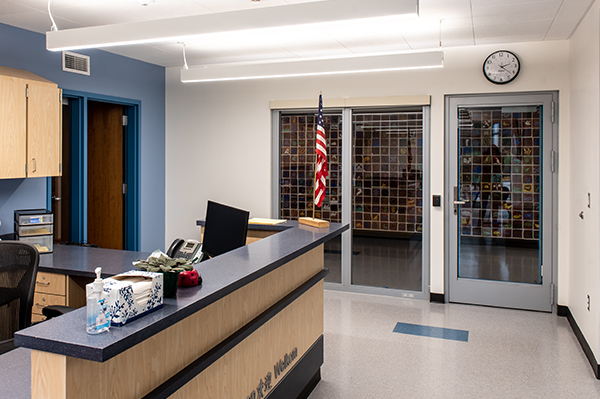

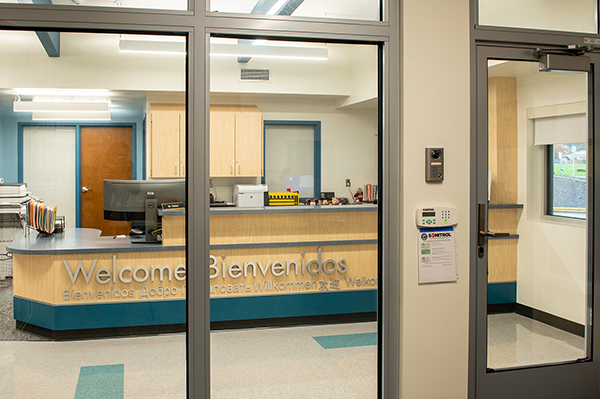

Fire-Rated, Forced Entry and Bullet Resistant Transparent Wall Panel for Schools and Education Facilities


Pilkington Pyrostop® laminated to School Guard Glass® is fire rated up to 120 minutes, offers a Level III bullet resistance rating and withstands forced entry attacks in standard fire doors.

“Education is the most powerful weapon which you can use to change the world.”

-Nelson Mandela


  • Fire-rated for up to 120 minutes with required hose stream test
  • Deters forced entry in Fireframes® doors and frames from TGP and compliant doors and frames for 12+ minutes
  • Meets ASTM F1233 class 1.4 and H.P. White 5-aa1 for 12:10
  • Impact safety-rated - meets ANSI Z97.1 and CPSC 16 CFR1201 (Cat. I and II)
  • Fits in Fireframes® Heat Barrier Series by TGP
  • Available for use in compliant frames by others (see frame manufacturer for details)
  • Barrier to fire and smoke
  • Wireless with nearly the same clarity as ordinary float glass
  • If you are looking for fire-rated security glass, please visit Pilkington Pyrostop® BR
  • Available incorporating a variety of glass products, including (but not limited to): Tinted; One-Way Mirror; Low-E; Reflective; Art Glass; Translucent Interlayer (for added obscurity and privacy)
  • Protection against radiant and conductive heat transfer
  • Multi-laminate, not a sensitive polymer gel unit
  • For use in interior and exterior applications
  • Bullet resistance ratings up to UL Level III (up to Level VII available in different make-ups)

Sales of Pilkington Pyrostop are a cooperative effort between Technical Glass Products and Pilkington North America.


Forced Entry Resistant


Listed with Underwriters Laboratories, Inc.® File numbers are R13377 (45 minutes) and R38725 (60-90 minutes). Tests performed in accordance with:

UL 9 UL 10B UL 10C UL 263 UL 752 UL 972
NFPA 80 NFPA 251 NFPA 252 NFPA 257
ASTM E119 ASTM F1233
MEA 290-90-M-6 LARR 25798
HPW 5-aa1

Product Data

For technical data, including UL-752 Bullet Resistance and School Guard Glass ASTM F1233 and HPW 5-aa1 data, view product fact sheet.


Fireframes® Heat Barrier Series

60/90/120 Minute
Fire-Rated Doors and Frames

Combine with Pilkington Pyrostop® glass to provide a barrier to radiant and conductive heat transfer.

The time, in minutes or hours, that materials or assemblies can be expected to prevent flames and smoke from spreading.

As heat develops within the source area, pressure within the enclosed room begins to build relative to the pressure outside. Once the fire reaches equilibrium in the positive pressure zone, smoke, hot gases and flames are forced through any openings in the door or window assembly. Testing to the UL 10C standard more closely simulates real fire conditions.

Blocks radiant and conductive heat transfer from one side of the glass to the other. A required characteristic of glass used as a wall.

Classified and labeled by Underwriters Laboratories, Inc.® (UL), an independent product safety certification organization.

Immediately following a furnace test, heated glass is subjected to water from a fire hose. The cooling, impact and erosion created by the hose stream tests the integrity of the glass. In the U.S., the hose stream test is required for all fire ratings over 45 minutes (all fire ratings require it in Canada).

Available as a temperature rise door with Pilkington Pyrostop® fire-resistive-rated glass for 60-90 minute applications

Temperature rise doors provide a barrier to radiant and conductive heat transfer.

Available in stainless steel frame finish options for increased design flexibility.

Building codes clearly define hazardous locations where impact safety glass is required. Glass with this designation has been tested to meet impact safety requirements required for areas such as doors, sidelights, and areas close to the floor.

FireLite IGU is a fire-rated insulated glass ceramic unit that also complies with energy codes. It is designed for use in exterior applications where energy codes require an insulated product, or for interior applications with special needs such as sound reduction.

Withstands continuous temperatures to 1292° F for use in high efficiency heating appliances.

The ability of glass ceramic to withstand sudden heating, cooling, or both without cracking, shattering or exploding out of the frame.

The ability of the glass to stop various types of ammunition. Ratings are assigned in levels from 1 to 8, with a Level 8 rating being the highest (able to stop a 7.62mm rifle lead core full metal copper jacket, military ball).

The capacity of an element in a building structure to support a weight in addition to its own.

Listed and labeled by Intertek, an independent assurance, testing, inspection and certification organization.

Glazing designed to increase the amount of time required to gain entry. This additional time is intended to allow for the enactment of lock-down protocols and to allow for the arrival of emergency response teams. May be used in areas with high risk of prolonged attack or in critical areas such as vestibules. Forced entry resistant glazing should also resist penetration from hand-held or hand-thrown objects such as hammers, crowbars, bats, knives, bricks and rocks. (Source: NGA Glass Technical Paper FB71-21)
