Explore the Differences Between Product Lines

Looking for a clearer picture of how our fire-rated glass and framing products compare? Choose up to 4 products below to see how the features stack up. Simply click on any product to select. Or view TGP's fire-rated glass products by test standards.

Bim 3D Model

Select up to 4 Products to Compare

Fire-Protective: Protects against flames and smoke
Fire-Resistive: Protects against flames, smoke AND heat transfer (meets ASTM E119/UL 263)

Fire-Rated Glass

Fire-Protective Options
Protect against flames and smoke



FireLite®

20-90 Minutes

Fire-Rated Glass Ceramic

Fire Rating (Minutes)

20/45/60/90
Key Characteristic

Glass Ceramic
High Impact Safety
(CPSC 16 CFR1201 CAT. I AND II)

No
Passes Positive Pressure Test

Yes
Meets Energy Codes

No
Passes Required Hose Stream Test

Yes
UL Classified and Labeled

Application

Storefront/Window
Classification*

Fire-Protective

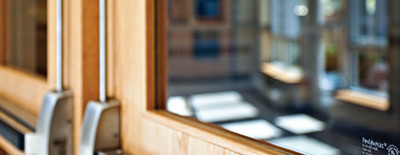

FireLite Plus®

20-180 Minutes

Fire-Rated, Safety-Rated Glass Ceramic

Fire Rating (Minutes)

20/45/60/90/120/180
Key Characteristic

Laminated Glass Ceramic
High Impact Safety
(CPSC 16 CFR1201 CAT. I AND II)

Yes
Passes Positive Pressure Test

Yes
Meets Energy Codes

No
Passes Required Hose Stream Test

Yes
UL Classified and Labeled

Application

Doors, Storefront/Window
Classification*

Fire-Protective

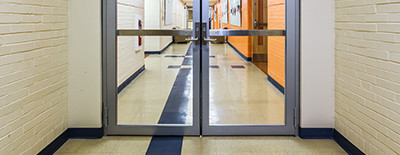

FireLite® NT

20-180 Minutes

Fire-Rated, Safety-Rated Glass Ceramic with Surface-Applied Film

Fire Rating (Minutes)

20/45/60/90/120/180
Key Characteristic

Glass Ceramic with Surface-Applied Approved Fire-Rated Film
High Impact Safety
(CPSC 16 CFR1201 CAT. I AND II)

Yes
Passes Positive Pressure Test

Yes
Meets Energy Codes

No
Passes Required Hose Stream Test

Yes
UL Classified and Labeled

Application

Doors, Storefront/Window
Classification*

Fire-Protective

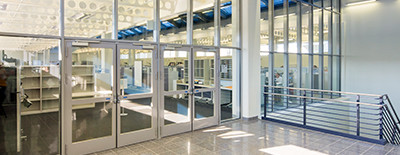

FireLite® IGU

20-180 Minutes

Fire-Rated or Fire/Impact Safety-Rated Insulated Glass Units

Fire Rating (Minutes)

20/45/60/90/120/180
Key Characteristic

Glass Ceramic Insulated Glass Unit
High Impact Safety
(CPSC 16 CFR1201 CAT. I AND II)

Yes
Passes Positive Pressure Test

Yes
Meets Energy Codes

Yes
Passes Required Hose Stream Test

Yes
UL Classified and Labeled

Application

Doors, Storefront/Window
Classification*

Fire-Protective
WireLite®

45 Minutes

Fire-Rated, Wired Glass

Fire Rating (Minutes)

45
Key Characteristic

Wired Glass
High Impact Safety
(CPSC 16 CFR1201 CAT. I AND II)

No
Passes Positive Pressure Test

Yes
Meets Energy Codes

No
Passes Required Hose Stream Test

Yes
UL Classified and Labeled

Application

Storefront/Window
Classification*

Fire-Protective

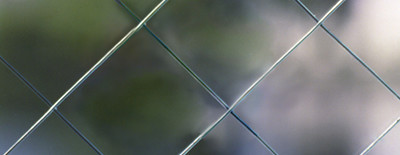

WireLite® NT

20-90 Minutes

Fire-Rated, Impact Safety-Rated Wired Glass with Surface-Applied Film

Fire Rating (Minutes)

20/45/60/90
Key Characteristic

Wired Glass with Surface-Applied Approved Fire-Rated Film
High Impact Safety
(CPSC 16 CFR1201 CAT. I AND II)

Yes
Passes Positive Pressure Test

Yes
Meets Energy Codes

No
Passes Required Hose Stream Test

Yes
UL Classified and Labeled

Application

Doors, Storefront/Window
Classification*

Fire-Protective
Fireglass®20

20 Minutes

Fire-Rated, Safety-Rated Glass

Fire Rating (Minutes)

20
Key Characteristic

Tempered Wireless Glass
High Impact Safety
(CPSC 16 CFR1201 CAT. I AND II)

Yes
Passes Positive Pressure Test

Yes
Meets Energy Codes

No
Passes Required Hose Stream Test

No
UL Classified and Labeled

Application

Doors
Classification*

Fire-Protective

Fire-Resistive Options
Protect against flames, smoke AND heat transfer (meets ASTM E119/UL 263)

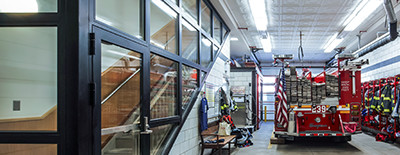

Pilkington Pyrostop®

45-120 Minutes

Fire-Rated, Impact Safety-Rated Transparent Wall Panels

Fire Rating (Minutes)

45/60/90/120
Key Characteristic

Transparent Multi-Laminate Wall Panel
High Impact Safety
(CPSC 16 CFR1201 CAT. I AND II)

Yes
Passes Positive Pressure Test

Yes
Meets Energy Codes

Yes
Passes Required Hose Stream Test

Yes
UL Classified and Labeled

Application

Doors, Storefront/Window, Walls, Floor/Ceiling
Classification*

Fire-Resistive

Fire-Rated Framing

Storefront/Window
Fire-Protective: Protects against flames and smoke
Fire-Resistive: Protects against flames, smoke AND heat transfer (meets ASTM E119/UL 263)



Fireframes® Aluminum Series

45 Minute

Fire-Protective-Rated Frames

60/120 MINUTE

Fire-Resistive-Rated Frames

Narrow profiles allow unlimited areas of glazing in fire separations.

Fire Rating (Minutes)

45/60/120
Key Characteristic

Narrow sightlines using extruded aluminum frames
Available in Stainless Steel?

No
UL Classified and Labeled

Application

Doors**, Storefront/Window
Classification*

Fire-Protective: 45 Minutes
Fire-Resistive: 60 Minutes +
Location

Interior or Exterior
Fireframes TimberLine Series

45 Minute

Fire-Protective-Rated Frames

60/120 MINUTE

Fire-Resistive-Rated Frames

Features a high strength steel sub-frame with a real wood veneered metal cover cap.

Fire Rating (Minutes)

45/60/120
Key Characteristic

High strength steel sub-frame with a variety of real wood veneered cover cap options
Available in Stainless Steel?

No
UL Classified and Labeled

Application

Doors**, Storefront/Window
Classification*

Fire-Protective: 45 Minutes
Fire-Resistive: 60 Minutes +
Location

Interior only

Storefront/Window and Door
Fire-Protective: Protects against flames and smoke
Fire Resistive: Protects against flames, smoke AND heat transfer (meets ASTM E119/UL 263)



Fireframes® Designer Series

20/45/60/90 Minute

Fire-Protective-Rated Doors & Frames

60/90 Minute

Fire-Resistive-Rated Doors

A sleek, modern alternative to traditional hollow metal steel frames.

Fire Rating (Minutes)

20/45/60/90
Key Characteristic

Sleek alternative to hollow metal steel frames
Available in Stainless Steel?

Yes
UL Classified and Labeled

Application

Doors, Storefront/Window
Classification*

Fire-Protective: 20-90 Minute Doors & Frames
Fire-Resistive: 60-90 Minute Doors
Location

Interior or Exterior
Fireframes® Heat Barrier Series

60/90/120 Minute

Fire-Resistive-Rated Doors and Frames

Combine with Pilkington Pyrostop® glass to provide a barrier to radiant and conductive heat transfer.

Fire Rating (Minutes)

60/90/120
Key Characteristic

Narrow steel profiles that provide a barrier to heat transfer
Available in Stainless Steel?

No
UL Classified and Labeled

Application

Doors, Storefront/Window
Classification*

Fire-Resistive
Location

Interior or Exterior
Fireframes® Hardwood Series

20/45 Minute

Fire-Protective-Rated Doors and Frames

Attractive alternative to traditional hollow metal steel frames.

Fire Rating (Minutes)

20/45
Key Characteristic

Hardwood face available in a variety of wood species
Available in Stainless Steel?

No
UL Classified and Labeled

Application

Doors, Storefront/Window
Classification*

Fire-Protective
Location

Interior only

Walls
Fire-Protective: Protects against flames and smoke
Fire-Resistive: Protects against flames, smoke AND heat transfer (meets ASTM E119/UL 263)



Fireframes ClearView® System

60/120 Minute

Fire-Resistive-Rated Frames

Features nearly colorless transitions between butt-glazed glass with a heat-resistive perimeter frame.

Fire Rating (Minutes)

60/120
Key Characteristic

Nearly colorless transitions between butt-glazed glass with a heat-resistive perimeter frame
Available in Stainless Steel?

No
UL Classified and Labeled

Application

Walls
Classification*

Fire-Resistive
Location

Interior only

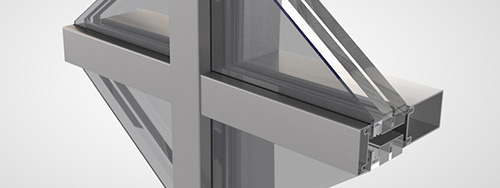

Fireframes® Curtainwall Series

45 Minute

Fire-Protective-Rated Frames

60/120 Minute

Fire-Resistive-Rated Frames and Curtain Walls

Allows for large, multi-story expanses of glass in interior and exterior applications using narrow steel profiles.

Fire Rating (Minutes)

45/60/120
Key Characteristic

Narrow steel profile curtain wall system
Available in Stainless Steel?

Yes
UL Classified and Labeled

Application

Fire-Protective: Windows
Fire-Resistive: Walls
Classification*

Fire-Protective: 45 Minutes
Fire-Resistive: 60 Minutes +
Location

Interior or Exterior
Fireframes SG Curtainwall® Series

45 Minute

Silicone Glazed Fire-Protective-Rated Frames

60/120 Minute

Silicone Glazed Fire-Resistive-Rated Frames and Curtain Walls

Create large, fire-rated glazed walls with the monolithic appearance of a structural silicone glazed system.

Fire Rating (Minutes)

45/60/120
Key Characteristic

Smooth, monolithic curtain wall system
Available in Stainless Steel?

Yes
UL Classified and Labeled

Application

Fire-Protective: Windows
Fire-Resistive: Walls
Classification*

Fire-Protective: 45 Minutes
Fire-Resistive: 60 Minutes +
Location

Interior or Exterior

Floor/Ceiling
Fire Resistive: Protects against flames, smoke AND heat transfer (meets ASTM E119/UL 263)



Fireframes ClearFloor® System

60/120 Minute

Fire-Resistive-Rated, Safety-Rated Glass Floor System

This advanced glass floor system is impact-resistant and fire-rated for two hours.

Fire Rating (Minutes)

60/120
Key Characteristic

Impact-resistant floor system
Available in Stainless Steel?

No
UL Classified and Labeled

Application

Floor/Ceiling
Classification*

Fire-Resistive
Location

Interior only
